TP1 :¶
Cluster prerequisites¶
On the Debian VM :¶
kubectl config use-context minikube
kubectl get nodes
kubectl create namespace cicd
Install Helm :¶
curl https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3 | bash
helm version
Install Gitea¶
Gitea provides an official chart that is very easy to deploy:¶
helm repo add gitea-charts https://dl.gitea.com/charts/
helm repo update
helm install gitea gitea-charts/gitea -n cicd
Pods sanity checks :¶
kubectl get pods -n cicd
kubectl get svc -n cicd
Expose Gitea to the outside with port forwarding (same principle as before (not recommanded for security)):¶
kubectl port-forward -n cicd svc/gitea-http --address=0.0.0.0 3000:3000
From your remote machine, open:¶
http://<Debian-IP>:3000
Gitea will be available on this port.
Install Jenkins¶
Jenkins also has an official Helm chart:¶
helm repo add jenkins https://charts.jenkins.io
helm repo update
helm install jenkins jenkins/jenkins -n cicd
Wait until the pod is ready:¶
kubectl get pods -n cicd -w
Expose Jenkins:¶
kubectl port-forward -n cicd svc/jenkins --address=0.0.0.0 8080:8080
Access from distant machine:¶
http://<Debian-IP>:8080
The initial admin password can be retrieved via:¶
kubectl exec -n cicd deploy/jenkins -- /bin/cat /run/secrets/chart-admin-password
or via the secret documented in the README of the chart.
TP2: Terraform on Minikube: “Linux VM” + Nginx container + one‑command destroy¶
Architecture¶
Directory layout:
terraform-minikube/
├── providers.tf
├── namespace.tf
├── linux-vm.tf
├── nginx.tf
└── outputs.tf
providers.tf¶
terraform {
required_providers {
kubernetes = {
source = "hashicorp/kubernetes"
version = "~> 2.25"
}
}
}
provider "kubernetes" {
config_path = "~/.kube/config"
config_context = "minikube"
}
namespace.tf¶
resource "kubernetes_namespace" "devops_lab" {
metadata {
name = "devops-lab"
labels = {
env = "local"
managed = "terraform"
}
}
}
linux-vm.tf - “Debian VM” Pod¶
resource "kubernetes_deployment" "linux_vm" {
metadata {
name = "linux-vm"
namespace = kubernetes_namespace.devops_lab.metadata[0].name
labels = {
app = "linux-vm"
role = "simulated-vm"
}
}
spec {
replicas = 1
selector {
match_labels = {
app = "linux-vm"
}
}
template {
metadata {
labels = {
app = "linux-vm"
}
}
spec {
container {
name = "debian-linux"
image = "debian:stable-slim"
command = ["/bin/bash", "-c", "--"]
args = ["while true; do sleep 30; done"]
resources {
requests = {
cpu = "100m"
memory = "128Mi"
}
limits = {
cpu = "250m"
memory = "256Mi"
}
}
}
}
}
}
}
nginx.tf - Deployment + Service¶
resource "kubernetes_deployment" "nginx" {
metadata {
name = "nginx-server"
namespace = kubernetes_namespace.devops_lab.metadata[0].name
labels = {
app = "nginx"
}
}
spec {
replicas = 1
selector {
match_labels = {
app = "nginx"
}
}
template {
metadata {
labels = {
app = "nginx"
}
}
spec {
container {
name = "nginx"
image = "nginx:latest"
port {
container_port = 80
}
resources {
requests = {
cpu = "250m"
memory = "50Mi"
}
limits = {
cpu = "500m"
memory = "512Mi"
}
}
}
}
}
}
}
resource "kubernetes_service" "nginx" {
metadata {
name = "nginx-service"
namespace = kubernetes_namespace.devops_lab.metadata[0].name
}
spec {
selector = {
app = "nginx"
}
port {
port = 80
target_port = 80
node_port = 30080
}
type = "NodePort"
}
}
outputs.tf¶
output "nginx_access_url" {
description = "URL to Nginx via Minikube"
value = "http://$(minikube ip):30080"
}
output "linux_vm_pod_name" {
description = "Linux VM pod"
value = "kubectl exec -it -n devops-lab deploy/linux-vm -- /bin/bash"
}
Full workflow¶
Prerequisite:¶
Minikube is running: minikube start
terraform init
terraform plan
terraform apply -auto-approve
kubectl exec -it -n devops-lab deploy/linux-vm -- /bin/bash
terraform destroy -auto-approve

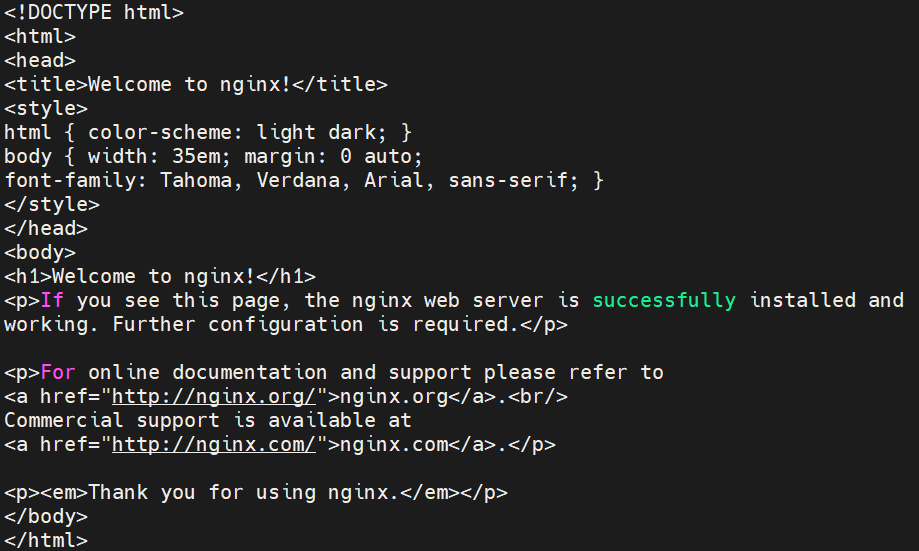

Résultat de curl http://$(minikube ip):30080
TP3: Ansible: install Apache + custom page + service enabled + idempotence¶
Structure¶
ansible-apache/
├── inventory.ini
├── playbook.yml
├── templates/
│ └── index.html.j2
└── vars/
└── main.yml
inventory.ini¶
[webservers]
vm-linux ansible_host=<VM_IP> ansible_user=debian ansible_ssh_private_key_file=~/.ssh/id_rsa
[webservers:vars]
ansible_python_interpreter=/usr/bin/python3
vars/main.yml¶
apache_package: apache2
apache_service: apache2
web_root: /var/www/html
site_title: "Automatisation - TP3 - Ansible"
author: "Reynaud"
templates/index.html.j2¶
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>{{ site_title }}</title>
<style>
body { font-family: Arial, sans-serif; background: #1e1e2e; color: #cdd6f4; text-align: center; padding: 50px; }
h1 { color: #89b4fa; }
p { color: #a6e3a1; }
.badge { background: #313244; padding: 8px 16px; border-radius: 8px; display: inline-block; margin: 5px; }
</style>
</head>
<body>
<h1>{{ site_title }}</h1>
<p>Server: <strong>{{ ansible_hostname }}</strong></p>
<p>Deployed on: <strong>{{ ansible_date_time.date }}</strong></p>
<p>Author: <strong>{{ author }}</strong></p>
<div>
<span class="badge">Terraform</span>
<span class="badge">Ansible</span>
<span class="badge">Apache</span>
</div>
</body>
</html>
playbook.yml¶
---
- name: Déploiement Apache + page web personnalisée
hosts: webservers
become: false
vars_files:
- vars/main.yml
tasks:
- name: Installer les prérequis système (python3, sudo, python3-apt)
ansible.builtin.raw: |
apt-get update -qq && apt-get install -y python3 sudo python3-apt
changed_when: true
- name: Mettre à jour le cache APT
ansible.builtin.apt:
update_cache: true
cache_valid_time: 3600
- name: Installer Apache
ansible.builtin.apt:
name: "{{ apache_package }}"
state: present
- name: Créer le répertoire run d'Apache
ansible.builtin.file:
path: /var/run/apache2
state: directory
mode: '0755'
- name: Démarrer Apache directement via apache2ctl
ansible.builtin.command:
cmd: apache2ctl start
register: apache_start
failed_when:
- apache_start.rc != 0
- "'already running' not in apache_start.stderr"
changed_when: "'already running' not in apache_start.stderr"
- name: S'assurer que le dossier web existe
ansible.builtin.file:
path: "{{ web_root }}"
state: directory
mode: '0755'
- name: Déployer la page web via template Jinja2
ansible.builtin.template:
src: templates/index.html.j2
dest: "{{ web_root }}/index.html"
owner: www-data
group: www-data
mode: '0644'
register: page_deployed
- name: Recharger Apache si la page a changé
ansible.builtin.command:
cmd: apache2ctl graceful
when: page_deployed.changed
failed_when: false
- name: Vérifier qu'Apache répond sur le port 80
ansible.builtin.uri:
url: "http://localhost"
status_code: 200
changed_when: false
check_mode: false
retries: 5
delay: 3
register: apache_check
until: apache_check.status == 200
- name: Afficher le statut final
ansible.builtin.debug:
msg: "Apache répond — HTTP {{ apache_check.status | default('N/A (check mode)') }}"
Commands¶
ansible -i inventory.ini webservers -m ping
ansible-playbook -i inventory.ini playbook.yml --check --diff
ansible-playbook -i inventory.ini playbook.yml
Résultat "ping"

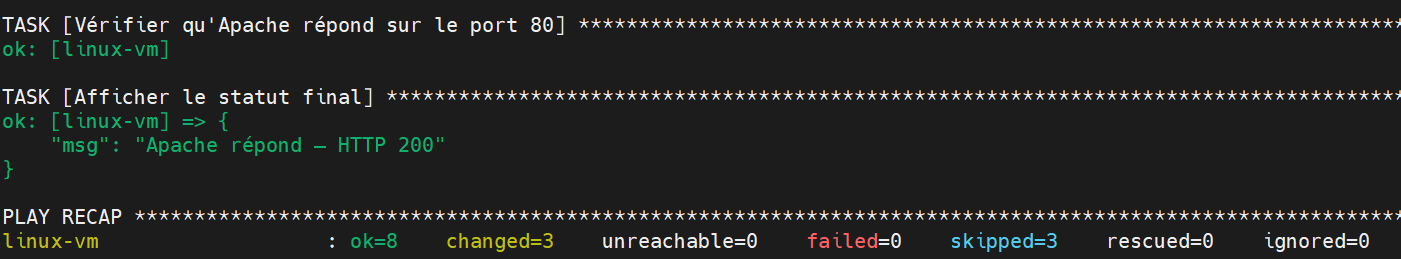

Résultat "--check --diff"
On the second run:
PLAY RECAP
vm-linux : ok=6 changed=0 unreachable=0 failed=0 skipped=0
changed=0 confirm the playbookis idempotent.
TP4: CI/CD pipeline: Terraform VM + Ansible Nginx + Nginx reverse proxy + curl test¶
Architecture¶
Client HTTP --> [Container Nginx Reverse Proxy :80] --> proxy_pass http://vm-nginx --> [Linux VM - Nginx static site :8080]
5 étapes : validate → provision → configure → deploy_proxy → test.
terraform/main.tf (VM simulated as Pod + NodePort)¶
terraform {
required_providers {
kubernetes = {
source = "hashicorp/kubernetes"
version = "~> 2.25"
}
}
}
provider "kubernetes" {
config_path = "~/.kube/config"
config_context = "minikube"
}
resource "kubernetes_namespace" "webstack" {
metadata { name = "webstack" }
}
resource "kubernetes_deployment" "linux_vm" {
metadata {
name = "linux-vm"
namespace = kubernetes_namespace.webstack.metadata[0].name
}
spec {
replicas = 1
selector { match_labels = { app = "linux-vm" } }
template {
metadata { labels = { app = "linux-vm" } }
spec {
container {
name = "debian"
image = "debian:stable-slim"
command = ["/bin/bash", "-c", "apt-get update -qq && apt-get install -y -qq openssh-server && service ssh start && while true; do sleep 30; done"]
port { container_port = 22 }
port { container_port = 8080 }
}
}
}
}
}
resource "kubernetes_service" "linux_vm_svc" {
metadata {
name = "linux-vm-svc"
namespace = kubernetes_namespace.webstack.metadata[0].name
}
spec {
selector = { app = "linux-vm" }
port {
name = "ssh"
port = 22
node_port = 30022
}
port {
name = "http"
port = 8080
node_port = 30880
}
type = "NodePort"
}
}
terraform/outputs.tf¶
output "vm_ssh_port" {
value = 30022
}
output "vm_http_port" {
value = 30880
}
output "minikube_ip" {
value = "$(minikube ip)"
}
ansible/playbook.yml¶
---
- name: Deploy Nginx + static site
hosts: webservers
become: true
vars:
nginx_port: 8080
site_title: "Web - CI/CD Pipeline"
handlers:
- name: restart nginx
ansible.builtin.service:
name: nginx
state: restarted
tasks:
- name: Update APT cache
ansible.builtin.apt:
update_cache: true
cache_valid_time: 3600
- name: Install Nginx
ansible.builtin.apt:
name: nginx
state: present
- name: Configure Nginx on port 8080
ansible.builtin.copy:
dest: /etc/nginx/sites-available/default
content: |
server {
listen {{ nginx_port }};
root /var/www/html;
index index.html;
location / { try_files $uri $uri/ =404; }
}
mode: '0644'
notify: restart nginx
- name: Deploy custom web page
ansible.builtin.template:
src: templates/index.html.j2
dest: /var/www/html/index.html
owner: www-data
group: www-data
mode: '0644'
notify: restart nginx
- name: Ensure Nginx is started and enabled on boot
ansible.builtin.service:
name: nginx
state: started
enabled: true
- name: Verify Nginx responds on 8080
ansible.builtin.uri:
url: "http://localhost:8080"
status_code: 200
changed_when: false
proxy/nginx.conf (reverse proxy container)¶
events {}
http {
upstream backend_vm {
server VM_IP:30880;
}
server {
listen 80;
server_name _;
location / {
proxy_pass http://backend_vm;
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_connect_timeout 10s;
proxy_read_timeout 30s;
}
}
}
proxy/docker-compose.yml¶
services:
reverse-proxy:
image: nginx:alpine
container_name: nginx-proxy
ports:
- "80:80"
volumes:
- ./nginx.conf:/etc/nginx/nginx.conf:ro
restart: unless-stopped
.gitlab-ci.yml - full pipeline¶
stages:
- validate
- provision
- configure
- deploy_proxy
- test
variables:
TF_DIR: "terraform"
ANSIBLE_DIR: "ansible"
PROXY_DIR: "proxy"
ANSIBLE_HOST_KEY_CHECKING: "False"
validate:terraform:
stage: validate
image: hashicorp/terraform:latest
script:
- cd $TF_DIR
- terraform init -backend=false
- terraform validate
- terraform fmt -check
rules:
- if: '$CI_PIPELINE_SOURCE == "push"'
validate:ansible:
stage: validate
image: cytopia/ansible:latest
script:
- ansible-lint $ANSIBLE_DIR/playbook.yml
- ansible-playbook --syntax-check -i "localhost," $ANSIBLE_DIR/playbook.yml
rules:
- if: '$CI_PIPELINE_SOURCE == "push"'
provision:
stage: provision
image: hashicorp/terraform:latest
script:
- cd $TF_DIR
- terraform init
- terraform plan -out=tfplan
- terraform apply -auto-approve tfplan
- MINIKUBE_IP=$(minikube ip)
- echo "[webservers]" > ../$ANSIBLE_DIR/inventory.ini
- echo "vm-nginx ansible_host=${MINIKUBE_IP} ansible_port=30022 ansible_user=root" >> ../$ANSIBLE_DIR/inventory.ini
- echo "MINIKUBE_IP=${MINIKUBE_IP}" >> deploy.env
artifacts:
paths:
- $ANSIBLE_DIR/inventory.ini
- $TF_DIR/terraform.tfstate
reports:
dotenv: terraform/deploy.env
expire_in: 1 hour
when: manual
only:
- main
configure:
stage: configure
image: cytopia/ansible:latest
dependencies:
- provision
script:
- cd $ANSIBLE_DIR
- ansible-playbook -i inventory.ini playbook.yml -v
only:
- main
deploy_proxy:
stage: deploy_proxy
image: docker:24
services:
- docker:24-dind
dependencies:
- provision
script:
- sed -i "s/VM_IP/${MINIKUBE_IP}/g" $PROXY_DIR/nginx.conf
- cd $PROXY_DIR
- docker compose up -d --force-recreate
- sleep 5
- docker ps | grep nginx-proxy
only:
- main
test:smoke:
stage: test
image: curlimages/curl:latest
dependencies:
- deploy_proxy
script:
- |
RESPONSE=$(curl -s -o /body.html -w "%{http_code}" http://${MINIKUBE_IP}:80)
echo "HTTP Status: $RESPONSE"
if [ "$RESPONSE" != "200" ]; then
echo "FAIL - Reverse proxy did not respond correctly (HTTP $RESPONSE)"
exit 1
fi
- |
if grep -q "Secure Web Stack" /body.html; then
echo "SUCCESS - Custom page is correctly served through the reverse proxy!"
else
echo "FAIL - Unexpected response body"
cat /body.html
exit 1
fi
only:
- main
L'option when: manual à l'étape provision est une bonne pratique courante dans Terraform pour les environnements CI/CD, afin d'éviter de recréer accidentellement l'infrastructure de production.
Détruire le stack¶
Arrêter le reverse proxy¶
cd proxy && docker compose down
Détruire l'infrastructure Terraform¶
cd terraform && terraform destroy -auto-approve
On peut également ajouter une tâche « destroy » dans GitLab avec le paramètre « when: manual », qui exécute la commande « terraform destroy -auto-approve » pour faire la destruction en un clic.
